TOP PROP PERFORMANCE CONVERSIONS

TOP PROP PERFORMANCE CONVERSIONS

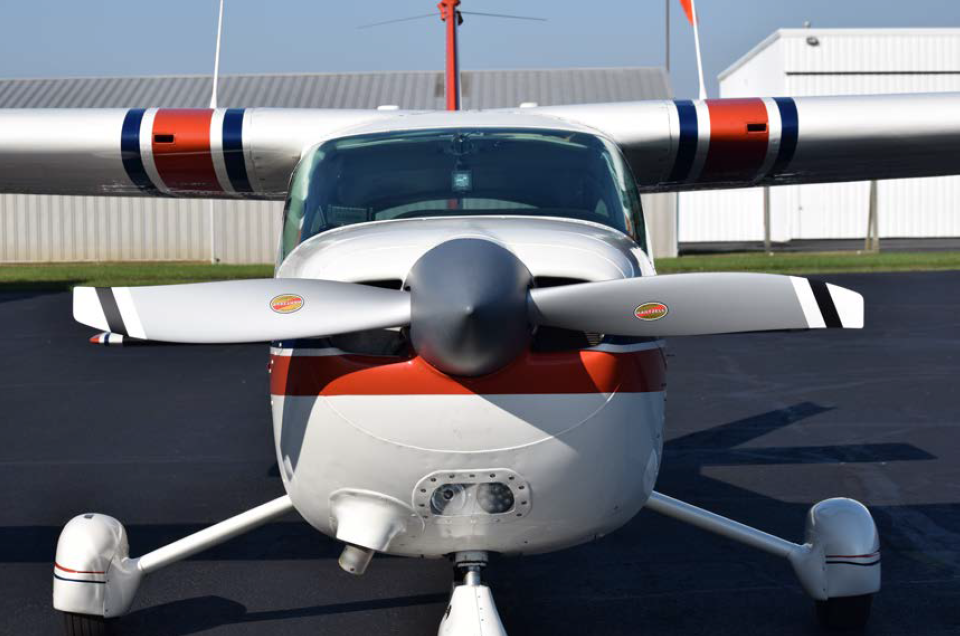

Cessna 177B Cardinal With O-360-A1F6(D) 180HP engine

Cessna 177B Cardinal With O-360-A1F6(D) 180HP engine

2-Bladed Aluminum Propeller

2-Bladed Aluminum Propeller
Number of Blades
Number of Blades
2
Diameter
Diameter
76.5"
Blade Construction
Blade Construction
Aluminum
Boot
Boot
N/A
Type
Type
LAND

Propeller Advantages:

  • Longer TBO – Longer Warranty
  • Acceleration enhanced and T.O. distance reduced aprox. 5% (30-40’)
  • Climb performance delta improves with altitude
  • Cruise improves 2 – 4 knots depending on power setting and altitude
  • Improved appearance – Scimitar blade
  • Diameter reduction allowable in the event of tip damage
  • Globally acceptable 84.8 dB(a) measured noise number (FAR 36, Appendix G, and ICAO Annex 16, Chapter 10)
  • Compatible with Powerflow Systems STC SA02115AT (tuned exhaust system)
Kit Options
– +
QTY
DESCRIPTION
ITEM #
PART #
Basic Kit
C2R00758STP
1
2-Bladed Propeller
HC-C2YR-1BFP/F7894-1.5
1
Composite Spinner
106848, 106848F1 (White), 106848F2 (Silver Metallic)
1
Spinner Mounting Kit
A-2476-63
1
STC Document Set
SA04200CH
Specifications
– +

76.5 inch diameter 2-bladed aluminum hub propeller
Composite Spinner
2400 hour / 6 year TBO
59 pounds (propeller and spinner)
Diameter reduction allowable to 75.5 inches
Placard -”Continuous operation is prohibited between 2000 – 2300 RPM with less than 8 inches manifold pressure”

Replaces
– +

McCauley C202 – 76 inch diameter 2-bladed prop
Diameter reduction allowable to 77 ins.
2000 hour / 6 year TBO

McCauley C206 – 78 inch diameter 2-bladed prop
Diameter reduction 74 inches
2000 hour / 6 year TBO

McCauley C208 – 76 inch diameter 2-bladed prop
Diameter reduction 75 inches
2000 hour / 6 year TBO

Foreign Validations
– +
