TOP PROP PERFORMANCE CONVERSIONS

TOP PROP PERFORMANCE CONVERSIONS

Cessna 182, 182(A-R) "Carbon Voyager"

Cessna 182, 182(A-R) "Carbon Voyager"

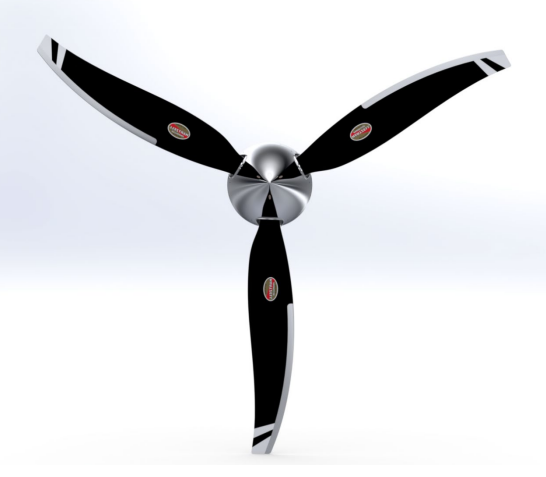

3-Bladed Scimitar "Carbon Voyager" Propeller

3-Bladed Scimitar "Carbon Voyager" Propeller
Number of Blades
Number of Blades
3
Diameter
Diameter
80", 82"
Blade Construction
Blade Construction
Structural Carbon Fiber
Boot
Boot
N/A
Type
Type
LAND

Propeller Advantages:

  • Increased takeoff and climb performance
  • Lightest 3 blade available
  • Unlimited Life Blades
  • Top Prop Warranty to first overhaul
Kit Options
– +
QTY
DESCRIPTION
ITEM #
PART #
COMPANY
AIRPLANE APPLICABILITY
TC/STC #
ENGINE MODEL
Peterson Performance Plus
182(E-R)
SA3825SW
IO-550-D
Basic Kit (82" Diameter)
G3F20161STP
1
3-Bladed Propeller
HC-G3YF-1N/NM8411-4/30
1
Polished Spinner
D-4798-3P (182,182(A-G)) or D-4798-1P (182(H-R))
1
STC Document Set
SA04643CH
COMPANY
AIRPLANE APPLICABILITY
TC/STC #
ENGINE MODEL
P. Ponk Cessna
182(H-P)
SA461NW
IO-520-D
Basic Kit (82" Diameter)
G3F20162STP
1
3-Bladed Propeller
HC-G3YF-1N/NM8411-4/30
1
Polished Spinner
D-4798-3P (182,182(A-G)) or D-4798-1P (182(H-R))
1
STC Document Set
SA04643CH
COMPANY
AIRPLANE APPLICABILITY
TC/STC #
ENGINE MODEL
John Jewell Cessna
182, 182(A-R)
SA01302AT
IO-520-D
Basic Kit (80" Diameter)
G3F20163STP
1
3-Bladed Propeller
HC-G3YF-1N/NM8411-6/30
1
Polished Spinner
D-4798-3P (182,182(A-G)) or D-4798-1P (182(H-R))
1
STC Document Set
SA04643CH
COMPANY
AIRPLANE APPLICABILITY
TC/STC #
ENGINE MODEL
John Jewell Cessna
182, 182(A-R)
SA01218AT
IO-550-D
Air Plains
182(H-P)
SA00152WI
IO-550-D
Davis Aviation
182Q
SA00810AT
IO-550-D
Basic Kit (80" Diameter)
G3F20164STP
1
3-Bladed Propeller
HC-G3YF-1N/NM8411-6/30
1
Polished Spinner
D-4798-3P (182,182(A-G)) or D-4798-1P (182(H-R))
1
STC Document Set
SA04643CH
COMPANY
AIRPLANE APPLICABILITY
TC/STC #
ENGINE MODEL
NorthPoint Cessna
182(Q,R).
SA5966NM
O-470-50
Basic Kit (80" Diameter)
G3F20165STP
1
3-Bladed Propeller
HC-G3YF-1N/NM8411-6/30
1
Polished Spinner
D-4798-3P (182,182(A-G)) or D-4798-1P (182(H-R))
1
STC Document Set
SA04643CH
Specifications
– +

80” or 82” diameter 3-bladed, aluminum hub, Carbon Fiber Propeller
2400 hour / 6 year TBO
80”: 64.4 pounds (propeller and D-4798-3P spinner)
80”: 63.6 pounds (propeller and D-4798-1P spinner)
82”: 64.6 pounds (propeller and D-4798-3P spinner)
82”: 63.8 pounds (propeller and D-4798-1P spinner)
NO RPM RESTRICTIONS

Foreign Validations
– +
  • FAA
