Cessna 208, 208A, 208B Caravan With PT6A-114, -114A engine

Cessna 208, 208A, 208B Caravan With PT6A-114, -114A engine

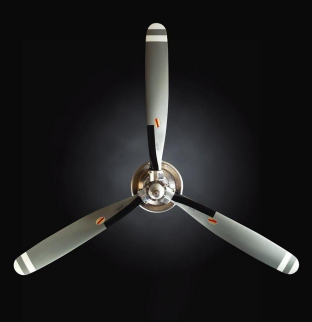

3-Bladed Aluminum Propeller

3-Bladed Aluminum Propeller
Number of Blades
Number of Blades
3
Diameter
Diameter
106"
Blade Construction
Blade Construction
Aluminum
Boot
Boot
De-Ice and Anti-Ice
Type
Type
LAND/FLOAT

Propeller Advantages:

  • Climb and cruise performance are as good as or slightly better than the McCauley C703 (+25 ft/min, +3kts measured)
  • Take off distance, unchanged
  • Greatest blade repair allowance available / longest life metal blade available for the Caravan
  • Optional start-locks improve handling for float planes
  • Both electric de-ice and fluid anti-ice kits maintain Flight Into Known Icing (FIKI)
Kit Options
– +
QTY
DESCRIPTION
ITEM #
PART #
Kit with no anti/de -icing
B3N00120STP
1
3-Bladed Propeller
HC-B3TN-3AF/T10890CN-2
1
Polished Spinner
D-4897-P
Kit with Electric De-ice: (w/o start-locks)
B3N00119STP
1
3-Bladed Propeller
HC-B3TN-3AF/T10890CNK-2
1
Polished Spinner
D-4897-P
1
Electric De-ice kit (prop)
7931-5E2715-1
Kit with Electric De-ice: (w/o start-locks, replacing a McCauley)
B3N00119STP*1
1
3-Bladed Propeller
HC-B3TN-3AF/T10890CNK-2
1
Polished Spinner
D-4897-P
1
Electric De-ice kit (prop)
7931-5E2715-1
1
Electric De-ice kit (airframe)
7931-5E2715-3
Basi c Kit: (w/start-locks)
B3N10010STP
1
3-Bladed Propeller
HC-B3TN-3AFY/T10890CN-2
1
Polished Spinner
D-4897-P
Kit with Electric De-ice: (w/start-locks)
B3N10020STP
1
3-Bladed Propeller
HC-B3TN-3AFY/T10890CNK-2
1
Polished Spinner
D-4897-P
1
Electric De-ice kit (prop)
7931-5E2715-1
Kit with Electric De-ice: (w/ start-locks, repl acing a McCaule y)
B3N10020STP*1
1
3-Bladed Propeller
HC-B3TN-3AFY/T10890CNK-2
1
Polished Spinner
D-4897-P
1
Electric De-ice kit (prop)
7931-5E2715-1
1
Electric De-ice kit (airframe)
7931-5E2715-3
Kit with Fluid Anti-ice
B3N21700STP
1
3-Bladed Propeller
HC-B3TN-3AF/T10890CNB-2
1
Polished Spinner
D-4897-2P
1
Anti-ice kit (prop)
105014
Kit with Fluid Anti-ice: (w/ start-locks)
B3N21750STP
1
3-Bladed Propeller
HC-B3TN-3AFY/T10890CNB-2
1
Polished Spinner
D-4897-2P
1
Anti-ice kit (prop)
105014
Specifications
– +

106 inch diameter 3-bladed, steel hub propeller
Diameter reduction allowable to 104 inches
Weight of propeller = 146.7 lbs.
Spinner = 9.0 lbs.
Electric De-ice = 2.8 lbs.
Anti-ice = 2.6 lbs.
3000 hour / 5 year

Replaces
– +

McCauley C703 – 106 inch diameter 3-bladed prop
Diameter reduction allowable to104 inches
Weight of propeller = 117.0 lbs.
Spinner =
Electric De-ice =
4000 hour / 6 year TBO

Hartzell HC-B3MN – 100 inch diameter 3-bladed composite prop
No diameter reduction allowable
Weight of propeller = 134.7 lbs.
Spinner = 9.0 lbs.
Electric De-ice = 2.8 lbs.
3000 hour / 5 year TBO

Foreign Validations
– +
  • ANAC
  • EASA
  • FAA
