TOP PROP PERFORMANCE CONVERSIONS

TOP PROP PERFORMANCE CONVERSIONS

Pilatus PC-12, PC-12/45, PC-12/47, PC-12/47E up to and including S/N 1575

Pilatus PC-12, PC-12/45, PC-12/47, PC-12/47E up to and including S/N 1575

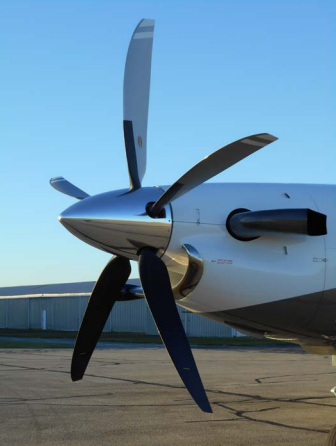

5-Bladed Carbon Fiber Propeller

5-Bladed Carbon Fiber Propeller
Number of Blades
Number of Blades
5
Diameter
Diameter
105"
Blade Construction
Blade Construction
Structural Carbon Fiber
Boot
Boot
De-Ice
Type
Type
LAND

Propeller Advantages:

  • Carbon fiber construction allowing for thinner, stiffer airfoil design for better all around performance
  • Over 10% improved take-off acceleration (0-90 knots)
  • Up to 100 fpm better ROC
  • 2-3 knots cruise speed increase
  • Reduced weight
  • Fly-over noise significantly reduced
  • No change in RPM limitations or placards
  • Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter
  • Best Warranty in the industry along with worldwide support
Kit Options
+
QTY
DESCRIPTION
ITEM #
PART #
Kit with Electric De-ice
E5A01504S
1
5-Bladed Propeller
HC-E5A-3A/NC10245B
1
Polished Spinner
105820P
1
De-ice kit (airframe)
105940
1
STC Document Set
SA03466CH
1
Gust-Lock Cover
106515-012
Specifications
+

Hartzell 105 inch diameter 5-bladed, HC-E5A-3A/NC10245B
light-weight, aluminum hub propeller with all carbon
Advanced Structural Composite, Second Generation
(ASCII), swept-tip, scimitar composite blades
4000 hour / 6 year TBO
168.5 pounds (prop and spinner)

Replaces
+

Hartzell – 105” HC-E4A-3D/E10477SK 4-bladed aluminum
4000 hours/6 year TBO
176.8 pounds (prop and spinner)
Diameter reduction allowable to 104 inches
MT-Propeller 102.4” 5 blade MTV-27-1-N-C-F-R(P)/CFR260-65a
with laminated wood blades
2500 hours/6 years
172.6 (prop w/de-ice)
Diameter reduction allowable to 101.2”

Foreign Validations
+
  • ANAC
  • EASA
  • FAA
  • Mexico
  • South Africa
  • TCCA

CONTACT US TO ORDER YOUR PROPELLER UPGRADE!

CONTACT US TO ORDER YOUR PROPELLER UPGRADE!

Call: (800) 942-7767 Option 2
Email: topprop@hartzellprop.com
Online: hartzellprop.com/contact

Call: (800) 942-7767 Option 2 Email: topprop@hartzellprop.com Online: hartzellprop.com/contact
