Manufacturer: Cessna
Aircraft Model(s): 206, U206, U206(A-G), P206, P206(A-E)
Applicable Engines: IO-520-(A,F)-CF, IO-550-F, IO-550-F-CF
PDF: 206, U206, U206(A-G), P206, P206(A-E)
Advantages:
- Increased takeoff and climb performance
- Lightest 3 blade available
- Unlimited Life Blades
- Top Prop Warranty to first overhaul
Landplane/Floatplane
Order Part # J3F20164STP (80″ Diameter) Kit Includes:
- Vitatoe Aviation……………………………………………………206, U206, U206(A-G), P206(A-E)……………………………………………………………IO-520-(A,F)-CF
| QTY | DESCRIPTION | ITEM # |
| 1 | 3-Bladed Propeller | HC-J3YF-1N/NM8411-6/SM44 |
| 1 | Polished Spinner | C-4582-1P |
| 1 | STC Document Set | SA04643CH |
Landplane/Floatplane
Order Part # J3F20163STP (82″ Diameter) Kit Includes:
- Texas Skyways…………………………………………………206, U206, U206(A-G), P206, P206(A-E)……………………………………………………………….IO-550-F
- Davis Aviation………………………………………………….206, U206, U206(A-G), P206, P206(A-E)…………………………………………………………………IO-550-F
- Summit Aviation………………………………………………………………………..U206(B-G)……………………………………………………………………………………………IO-550-F
- Vitatoe Aviation………………………………………………………..206, U206, U206(A-G), P206(A-E)……………………………………………………………..IO-550-F-CF
- Wipaire……………………………………………………………………………………………U206(E-G)……………………………………………………………………………………………..IO-550-F
- Summit Aviation…………………………………………………………….U206(B-G), P206(A-E)……………………………………………………………………………………..IO-550-N
| QTY |
DESCRIPTION |
ITEM # |
| 1 |
3-Bladed Propeller |
HC-J3YF-1N/NM8411-4/SM44 |
| 1 |
Polished Spinner |
C-4582-1P |
| 1 |
STC Document Set |
SA04643CH |
Floatplane
Order Part # J3F20161STP (86″ Diameter) Kit Includes:
- Texas Skyways……………………………………………………206, U206, U206(A-G), P206, P206(A-E)………………………………………………………………….IO-550-F
- Davis Aviation…………………………………………………….206, U206, U206(A-G), P206, P206(A-E)………………………………………………………………….IO-550-F
- Vitatoe Aviation……………………………………………………………206, U206, U206(A-G), P206(A-E)……………………………………………………………IO-550-F-CF
|
QTY
|
DESCRIPTION
|
ITEM #
|
|
1
|
3-Bladed Propeller
|
HC-J3YF-1N/NM8411-6/SM44
|
|
1
|
Polished Spinner
|
C-4582-1P
|
|
1
|
STC Document Set
|
SA04643CH
|
Applicable Models: 206, U206, U206(A-G), P206, P206(A-E)
Specifications:
- Applicable engines: IO-520-(A,F)-CF, IO-550-F, IO-550-F-CF

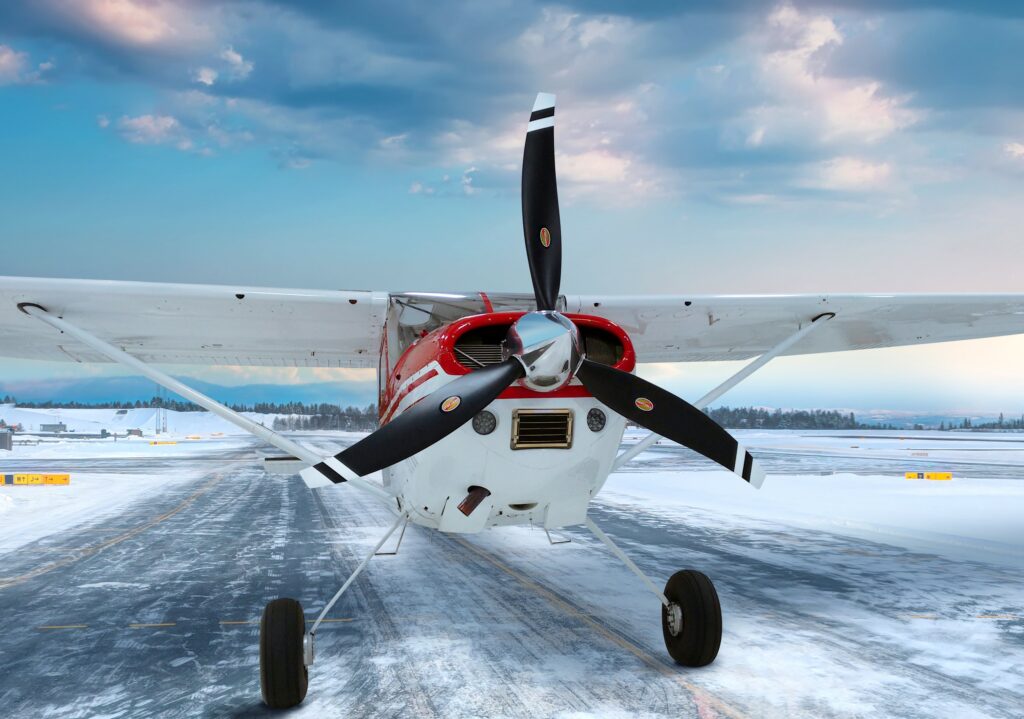

- 80″, 82″, or 86″ inch diameter 3-bladed aluminum hub, Carbon Fiber Propeller
- 2400 hour / 6 year TBO
- 80″: 64.6 pounds (J-Hub propeller and C-4582-1P spinner)
- 82″: 64.8 pounds (J-Hub propeller and C-4582-1P spinner)
- 86″: 65.1 pounds (J-Hub propeller and C-4582-1P spinner)
- NO RPM RESTRICTIONS
